Shimbol: Wireless and Monitoring Products
for any one using a video camera and sharing content for realtime viewing
Shimbol is the trade name of Shenzhen ZO Video Technology Co., Ltd, a Chinese manufacturer and supplier of technology in the wireless and monitoring industry.
With Shimbol, the company wants to bring its own brand to the market, as the demand for wireless video and video monitoring is growing and migrating to markets other than the traditional filming industry.
Product Categories
- Smartphone Wireless Selfie Monitor
- On Camera Monitor
- On Camera Recording Monitor
- Wireless Transmission System 1:1
- Wireless Transmission System 1:3, including Wireless Recording Monitor
Target Group
Shimbol wants to bring video products to a broad market while maintaining a proconsumer quality.
Film crews and other professionals in ads, vlogs, and events shooting will like the wireless product line because of the good image quality, the low latencies, the SDI connection, the transmitter range of 300m line of sight, and the possibility of receiving video signals on three devices, including a smartphone or tablet.
Consumers will like the products as the prices are lower than comparable products in the market, making Shimbol products appealing to any one using a video camera.
Product Group | Wireless Smartphone Rear Camera
(Selfie) Monitor
CP5 AND CP5 LITE
CP5 and CP5 Lite are wireless rear camera (selfie) smartphone monitors, with CP5 LIte being the basic version of the CP5. Both are crystal-clear 5-inch full HD monitor that receives the camera signals from the rear camera of the smartphone via wireless transmission.
You can attach the monitor to the back of your smartphone via a magnetic silicone case that comes with the product. This way, it serves as a monitor for selfies and vlogging.
The product also comes with a Bluetooth shutter control, so you don't need the record button on your smartphone to capture photos or videos.
When detached from the smartphone, the CP5 Lite monitor serves as a wireless remote device - up to a distance of 50m. This is a handy functionality for live streaming and monitoring purposes of, for instance, live event registrations.
Differences CP5 Lite vs CP5
CP5 Lite is a basic version of CP5 and has lesser functions than CP5. The monitor of the CP5 Lite is not a touch screen monitor, it does not have a TF card port for external recording and playback functionality, and there is no support for extras such as framing grid, 16:9 image ratio, volume, contrast/saturation, language, and Wi-Fi route mode connection.
Why use the CP5 or CP5 Lite and not the front camera of the smartphone?
The CP5 and CP5 Lite use the smartphone's rear camera, which is better quality and more powerful than the front camera. The rear camera is used for regular photography, video recording, and advanced features like night mode, zoom, and high-resolution shots. Many modern smartphones have multiple rear cameras (wide-angle, normal, macro, etc.) to improve photo and video quality.
The front camera of the smartphone is mainly used for selfies, video calls, and face recognition. It usually has a lower resolution than the rear camera, is often not sufficient in low-light conditions, and has no access to the different focal distances of the rear camera.
With the CP5 and CP5 Lite, you can take advantage of the rear camera of the smartphone and make selfies with better quality using different focal distances. Also, when not attached to the smartphone, you can use it as a remote monitor of whatever the rear camera captures.
In sum, CP5 and CP5 Lite are joyful devices designed to enhance smartphone photography and videography by providing a high-quality display for the rear camera.
Key Features CP5 and CP5 Lite
- High-Resolution Display: The CP5 features a 5-inch Full HD touchscreen, delivering clear and detailed visuals for precise framing and focus.
- Wireless Transmission: Utilizing dual-band Wi-Fi technology, it supports wireless video transmission up to 50 meters (approximately 164 feet) with minimal latency of 0.04 seconds, facilitating real-time monitoring.
- Built-in Bluetooth Remote Control: The monitor includes a built-in Bluetooth remote, enabling users to remotely capture photos or videos, adding convenience during shooting sessions.
- Durable Design: Constructed with a CNC-machined aluminum shell, the CP5 is both durable and lightweight, weighing approximately 123 grams, making it portable and easy to handle.
- High Brightness: With a brightness level of 500 nits, the monitor ensures visibility even in bright outdoor conditions, maintaining consistent performance under direct sunlight.
- Rechargeable Battery: Equipped with a 2000mAh rechargeable battery, the CP5 offers up to 3.5 hours of continuous use, supporting extended shooting sessions.
Specs CP5
| Description | 5-inch Full HD (1080p) touchscreen high-quality monitor for the rear camera of the smartphone |
| Ports | Type-C Port, TF Card Port (for external recording and playback), 3.5mm headphone Jack |
| Power Supply | Type-C 5V/ Built-in rechargeable battery |
| 16:9 Support | Supports 16:9 ratio mobile phones to zoom in proportion to pictures |
| Screen size | 5 inch |
| Brightness | 600nits |
| Wireless Transmission Distance | 50 Meter (164ft) |
| Resolution | 1080p |
| Power Consumption | < 3W |
| Form factor | Magnetic Case Design |
| Material | CNC Machined Aluminum Housing |
| Weight | 123g |
| Dimensions | 123.92*69.24*9.6mm |
| Bluetooth Shutter Control | Support |
| Transmission Frequency | 2.4G/ 5Ghz |
| Transmission Latency | 40ms |
| Receiving Sensitivity | -85dBm |
Specs CP5 Lite
| Description | 5-inch Full HD (1080p) high-quality monitor for the rear camera of the smartphone |
| Ports | Type-C Port, 3.5mm headphone Jack |
| Power Supply | Type-C 5V/ Built-in rechargeable battery |
| Screen size | 5 inch |
| Brightness | 600nits |
| Wireless Transmission Distance | 50 Meter (164ft) |
| Resolution | 1080p |
| Power Consumption | < 3W |
| Form factor | Magnetic Case Design |
| Material | CNC Machined Aluminum Housing |
| Weight | 123g |
| Dimensions | 123.92*69.24*9.6mm |
| Bluetooth Shutter Control | Support |
| Transmission Frequency | 2.4G/ 5Ghz |
| Transmission Latency | 40ms |
| Receiving Sensitivity | -85dBm |
Product Group | On Camera Monitor
SHIMBOL M7
| Description | 7 inch Professional on-camera monitor, 1920*1080 2000 nits, Touchscreen , 3D Lut, 4K HDMI + 3G SDI, Metal Frame |
| Screen Size | 7 inch Touchscreen |
| Resolution | 1920*1080 |
| Contrast Ratio | 1800:1 |
| Brightness | 2000cd/m2 |
| Color Gamut | P3 |
| Viewing Angle | 170° (H/V) |
| Interface | 1* HDMI and SDI input/ 1* HDMI+ SDI output / DC power input/ 3.5mm headphone jack/ SD card slot |
| Video Input Format | 4096*2160P25/24/23.98 |
| 3840*2160P30/23.98/25/24/23.98 | |
| 1920*1080p60/59.94/50/30/29.97/25/24/23.98 | |
| 1920*1080i60/59.94/50 | |
| 1280*720p60/59.94/50 | |
| Lut Format | Cube file (17*17*17, 33*33*33) |
| Audio†Frequency | 48KHZ |
| Power Supply Way | Dual Sony NP-F series battery (without battery inside) + DC Input |
| Voltage | DC7-16V |
| Power Consumption | <10W |
| Upgrade Method | SD Card |
| LUT Output | SDI and HDMI support |
| Body material | CNC alluminum alloy |
| Color | Blue-gray |
| Weight | 455g |
| Size | 178.8*110.8*20.3/28.3mm |
| Advanced†Features | * Luma Waveform # RGB Parade # Vectorscope # Histogram # The aspect ratio markers # Safe Area # Center Marker # Focus Peaking # Zoom In # Zebra Pattern # False Color # Monochrome # 3D LUT loading & adjustment # Gamma setting # HDR monitoring # Color temperature setting # Sharpness # RGB adjustment, etc. |
| Standard Accessories | Monitor, SD Card, SD Card Carry Case, Tempered Screen Protector, Dusting Cloth, HDMI Cable, SDI Cable, Hot Shoe Mount, Color Box, User Manual |
SHIMBOL M5
| Description | 5.5 inch Professional on-camera monitor, 1920*1080 2000 nits, Touchscreen , 3D Lut, 4K HDMI + 3G SDI, Metal Frame |
| Screen Size | 5 inch Touchscreen |
| Resolution | 1920*1080 |
| Contrast Ratio | 1200:1 |
| Brightness | 1200cd/m2 |
| Interface | 1* HDMI input/ 1* HDMI output / DC power input/ 3.5mm headphone jack/SD card slot |
| Video Input Format | 4096*2160P25/24/23.98 |
| 3840*2160P30/23.98/25/24/23.98 | |
| 1920*1080p60/59.94/50/30/29.97/25/24/23.98 | |
| 1920*1080i60/59.94/50 | |
| 1280*720p60/59.94/50 | |
| Lut Format | Cube file (17*17*17, 33*33*33) |
| Audio†Frequency | 48KHZ |
| Power Supply Way | Sony NP-F series battery (without battery inside) + DC Input |
| Voltage | DC6.5-16.8V |
| Power Consumption | <3.5W |
| Upgrade Method | SD Card |
| LUT Output | SDI and HDMI support |
| Body material | CNC metal farme |
| Operating Temperature | -10℃ ～ 40℃ |
| Storage Temperature | -20℃ ～ 60℃ |
| Color | Black |
| Weight | 283g |
| Size | 146.6*87.6*26.5mm |
| Advanced†Features | * Luma Waveform # RGB Parade # Vectorscope # Histogram # The aspect ratio markers # Safe Area # Center Marker # Focus Peaking # Zoom In # Zebra Pattern # False Color # Monochrome # 3D LUT loading & adjustment # Gamma setting # HDR monitoring # Color temperature setting # Sharpness # RGB adjustment, etc. |
| Standard Accessories | Monitor, SD Card, Tempered Screen Protector, HDMI Cable, Hot Shoe Mount, User Manual |
Product Group | On Camera Recording Monitor

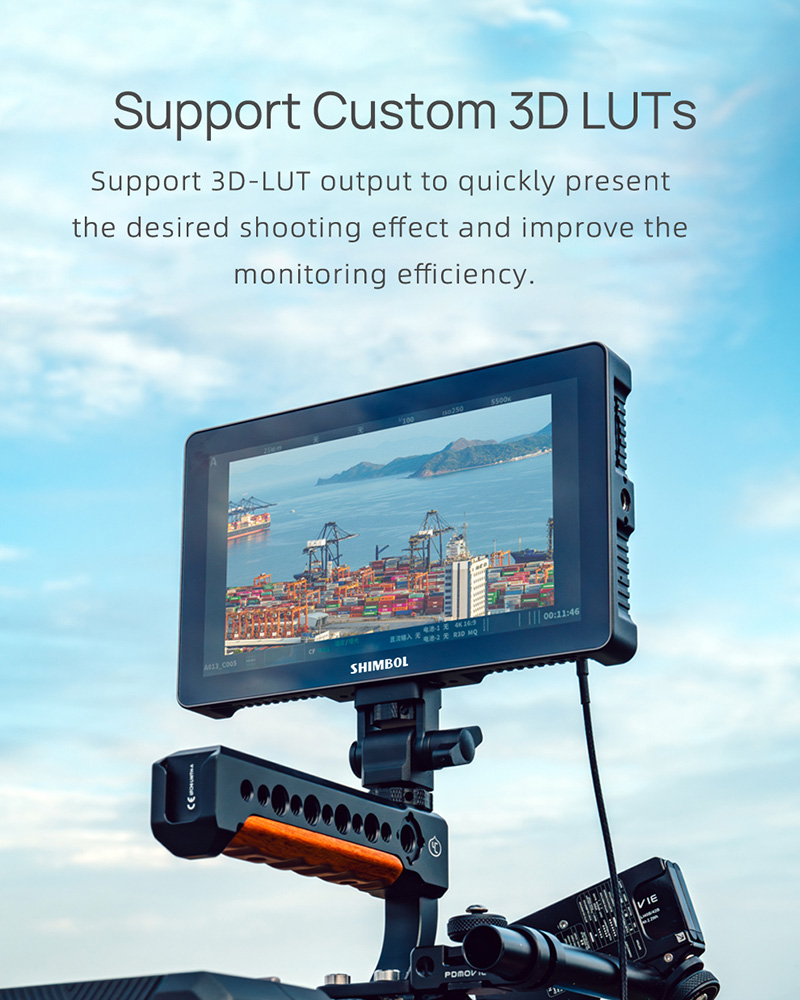

SHIMBOL MEMORY 7 PRO
| Description | Shimbol 7 inch 1920*1080 Touchscreen 3D Lut 4K HDMI 3G-SDI Video Recording Monitor with 3D-LUT OUT |
| Screen Size | 7 inch Touchscreen |
| Resolution | 1920*1080 |
| Contrast Ratio | 1800:1 |
| Brightness | 2200cd/m2 |
| Color Gamut | P3 |
| Viewing Angle | 170° (H/V) |
| Interface | 1* HDMI and SDI input/ 1* HDMI+ SDI output / SDI Input convert to HDMI output / DC power input/ 3.5mm headphone jack/ SD card slot |
| Video Input Format | 4096*2160P25/24/23.98 |
| 3840*2160P30/23.98/25/24/23.98 | |
| 1920*1080p60/59.94/50/30/29.97/25/24/23.98 | |
| 1920*1080i60/59.94/50 | |
| 1280*720p60/59.94/50 | |
| Video Rec Format | MP4 (SD card format is exFAT) |
| Lut Format | Cube file (17*17*17, 33*33*33) |
| Audio†Frequency | 48KHZ |
| Power Supply Way | Dual Sony NP-F series battery (without battery inside) + DC Input |
| Voltage | DC7-16V |
| Power Consumption | <10W |
| Upgrade Method | SD Card |
| LUT Output | SDI and HDMI support |
| Body material | CNC alluminum alloy |
| Color | Black |
| Weight | 455g |
| Size | 178.8*110.8*20.3/28.3mm |
| Advanced†Features | * Luma Waveform # RGB Parade # Vectorscope # Histogram # The aspect ratio markers # Safe Area # Center Marker # Focus Peaking # Zoom In # Zebra Pattern # False Color # Monochrome # 3D LUT loading & adjustment # Gamma setting # HDR monitoring # Color temperature setting # Sharpness # RGB adjustment, etc. |
| Standard Accessories | Monitor, SD Card, SD Card Carry Case, Tempered Screen Protector, Dusting Cloth, HDMI Cable, SDI Cable, Hot Shoe Mount, Color Box, User Manual |
SHIMBOL MEMORY 1 PRO
| Description | Shimbol 5.5 inch 1920*1080 Touchscreen 3D Lut 4K HDMI 3G-SDI Video Recording Monitor with 3D-LUT OUT |
| Screen Size | 5.5 inch Touchscreen |
| Resolution | 1920*1080 |
| Contrast Ratio | 1200:1 |
| Brightness | 2000cd/m2 |
| Interface | 1* HDMI and SDI input/ 1* HDMI+ SDI output / DC power input/ 3.5mm headphone jack/ SD card slot |
| Power SupplyWay/Voltag | Sony NP-F series battery (without battery inside) + DC Input |
| Voltage | DC6.5V-16.8V |
| Power Consumption | <12W |
| Video Input Format | 4096*2160P25/24/23.98 |
| 3840*2160P30/23.98/25/24/23.98 | |
| 1920*1080p60/59.94/50/30/29.97/25/24/23.98 | |
| 1920*1080i60/59.94/50 | |
| 1280*720p60/59.94/50 | |
| Video Recording Format | MP4 (a single file can't exceed 3.6G) |
| LUT†Format | Cube(17*17*17/33*33*33) |
| Audio†Frequency | 48KHZ |
| Operating Temperature | -10℃ ～ 40℃ |
| Storage Temperature | -20℃ ～ 60℃ |
| Unit Size(mm) | 146.6*87.6*26.5 |
| Unit Weight | 320g |
| Advanced†Features | Scope Menu, safe frames, grip, ratio marker, zoom, zebra, and many more |
| Standard Accessories | Monitor, SD Card, Tempered Screen Protector, HDMI Cable, SDI Cable, Hot Shoe Mount, Color Box, User Manual |

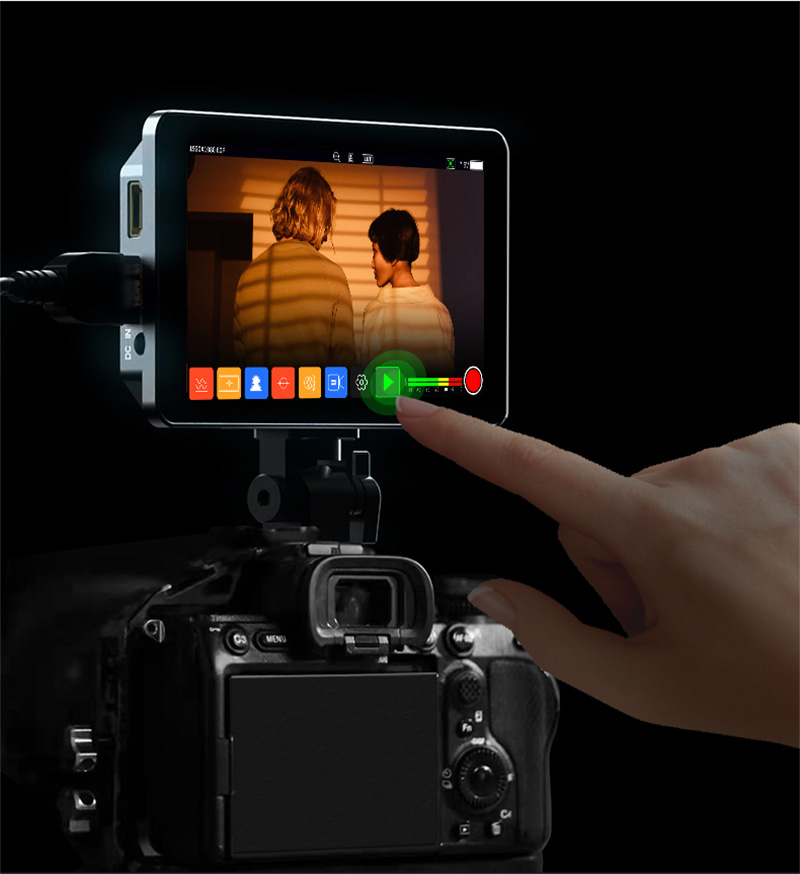

SHIMBOL MEMORY 1
| Description | 5.5 inch 1920*1080 Touchscreen3D Lut 4K HDMI Video Recording Monitor |
| Screen Size | 5.5 inch Touchscreen |
| Resolution | 1920*1080 |
| Contrast Ratio | 1200:1 |
| Brightness | 2000cd/m2 |
| Interface | 1* HDMI input/ 1* HDMI output / DC power input/ 3.5mm headphone jack/ TF card slot |
| Power SupplyWay/Voltag | Sony NP-F series battery (without battery inside) + DC Input |
| Voltage | DC6.5V-16.8V |
| Power Consumption | <9W |
| Video Input Format | 4096*2160P25/24/23.98 |
| 3840*2160P30/23.98/25/24/23.98 | |
| 1920*1080p60/59.94/50/30/29.97/25/24/23.98 | |
| 1920*1080i60/59.94/50 | |
| 1280*720p60/59.94/50 | |
| Video Recording Format | MP4 (a single file can't exceed 3.6G) |
| LUT†Format | Cube(17*17*17/33*33*33) |
| Audio†Frequency | 48KHZ |
| Operating Temperature | -10℃ ～ 40℃ |
| Storage Temperature | -20℃ ～ 60℃ |
| Unit Size(mm) | 146.6*87.6*26.5 |
| Unit Weight | 283g |
| Advanced†Features | Scope Menu, safe frames, grip, ratio marker, zoom, zebra, and many more |
| Standard Accessories | Monitor, Tempered Screen Protector, HDMI Cable, Hot Shoe Mount, User Manual |
Product Group | Wireless Transmission System 1:1
Anyone looking for a direct 1:1 connection between HDMI video sources can now do it wirelessly—at a price that's as affordable as a generous gift from or for a good friend.
With TP Mini and TP Max you can send the images of your camera or any other HDMI device to another screen and share content wirelessly in real time. The products are professional because of its good image quality, low latency, and aviation aluminum housing.

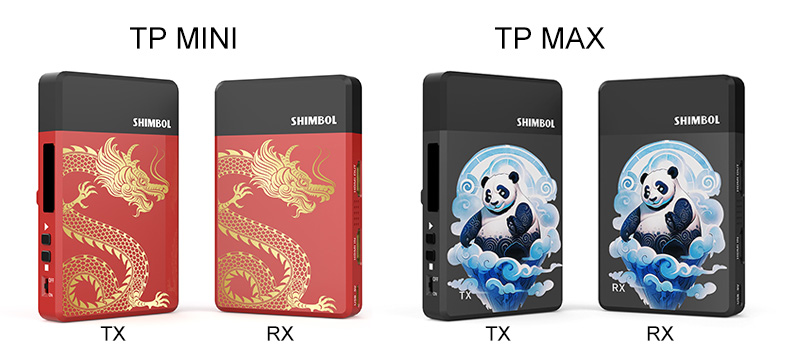

SHIMBOL TP MINI and TP MAX
TP Mini is a transmitter (TX) and receiver (RX) set that can transmit full HD video wirelessly over a distance of 600ft/180m. TP Max does the same over a longer distance, up to 1000ft/300m.
All is plug and play. Connect the TX to the HDMI port of your camera (or any other HDMI device), connect the RX to an HDMI monitor, and enjoy the shared content.
One transmitter (TX) can transmit to one receivers (RX), hence the term 1:1.
Specs TP Mini
- Transmits up to 1080p60 HDMI video
- 600ft/180m line-of-sight transmission to receiver
- Transmitter: HDMI In, HDMI Out, Receiver: HDMI Out x 2
- Metal Housings with 1/4"-20 mounting thread
- Built-in Antennas
- Bright OLED Display
- Power via L-series battery ( without battery inside), or USB Type-C input
- Extremely Low < 0.08s Latency
- In the box: Transmitter x 1; Receiver x 1 ; User Manual x 1; Type C cable x 1
- Packaging: Color box size, 131 * 97.5 * 81.5 mm
Specs TP Max
- Transmits up to 1080p60 HDMI video
- 1000ft/300m line-of-sight transmission to receiver
- Transmitter: HDMI In, HDMI Out, Receiver: HDMI Out x 2
- Metal Housings with 1/4"-20 mounting thread
- Built-in Antennas
- Bright OLED Display
- Power via L-series battery ( without battery inside), or USB Type-C input
- Extremely Low < 0.07s Latency
- In the box: Transmitter x 1; Receiver x 1 ; User Manual x 1; Type C cable x 2
- Packaging: Color box size, 131 * 97.5 * 81.5 mm
Product Group | Wireless Transmission System 1:3
including Wireless Recording Monitors
This group contains products that are part of a wireless video system that enables you to transmit video wirelessly to up to three receivers. One transmitter (TX) can transmit to 3 receivers (RX), hence the term 1:3. The three receivers can consist of a maximum of two hardware receivers and one smartphone or tablet using the Shimbol app. Alternatively, one can use 1 RX with 1 TX hardware and 2 TX Shimbol apps, or 1 RX with 3 TX Shimbol apps.
The hardware transmitters and receivers in this product group can communicate with each other, so you can use the transmitter of one product and send to a receiver of another product from this group.
The products in this group mainly distinguish from each other in video input (HDMI only or HDMI/SDI) and clean wireless distance coverage, also called Line of Sight (LOS).
The products in this group are:

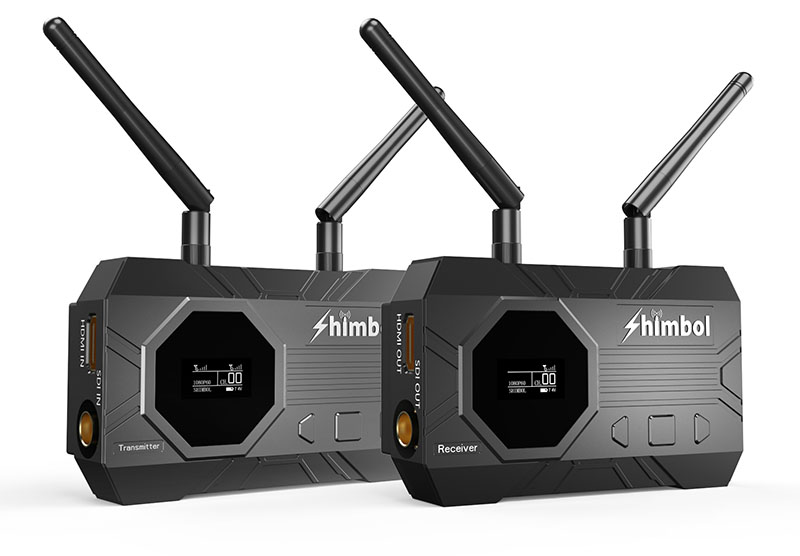

- Shimbol ZO1000 (TX+RX set for SDI and HDMI video, 300m LOS)
- Shimbol ZO1000RX (RX for SDI and HDMI video, 300m LOS)

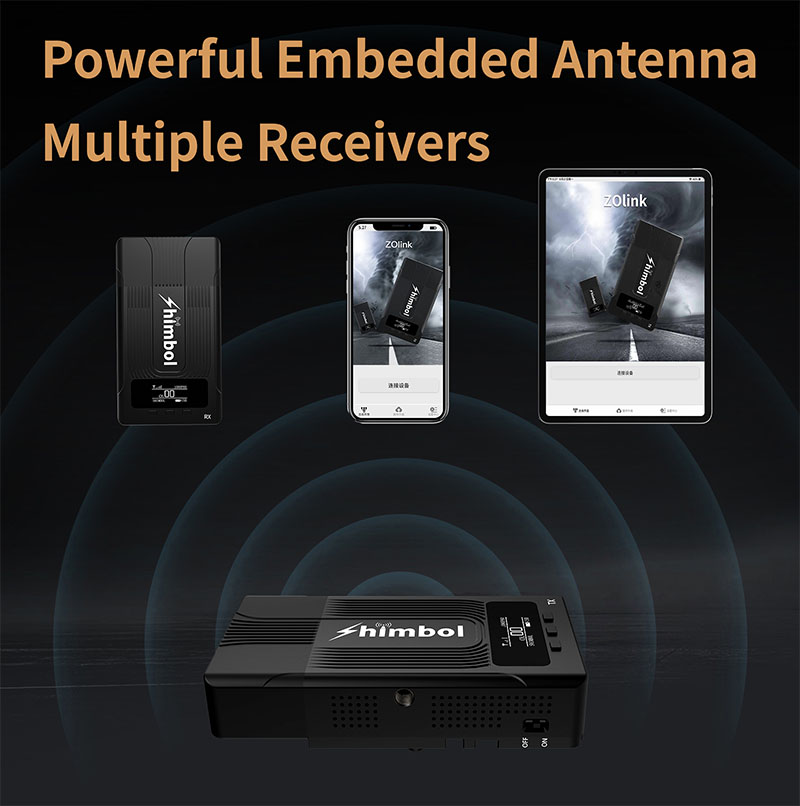

- Shimbol ZO600S (TX+RX set for SDI and HDMI video, 180m LOS)
- Shimbol ZO500 (TX+RX set for HDMI video, 150m LOS)
- Shimbol ZO600M - Wireless Recording Monitor (5.5 inch HDMI Touchscreen with user selectable TX or RX, 180m LOS)
- Shimbol ZO600MS - Wireless Recording Monitor (5.5. inch dual -band Touchscreen with user selectable TX or RX, 3D Lut HDMI and 3G- SD, 300m LOS)

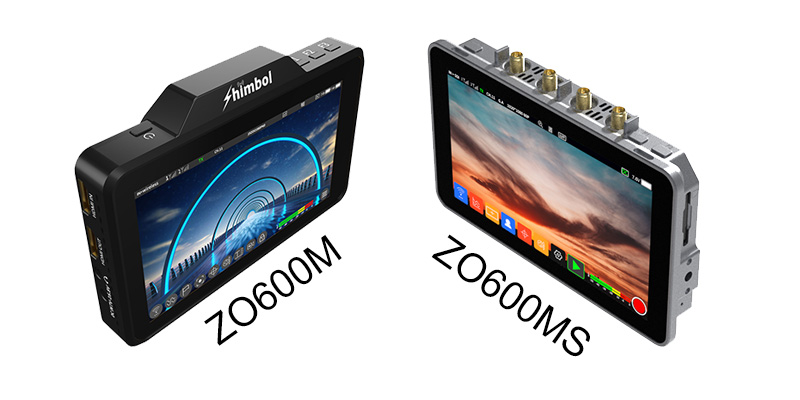

SHIMBOL ZO600M and ZO600MS
Wireless Recording Monitors (User Selectable TX or RX)
.jpg)

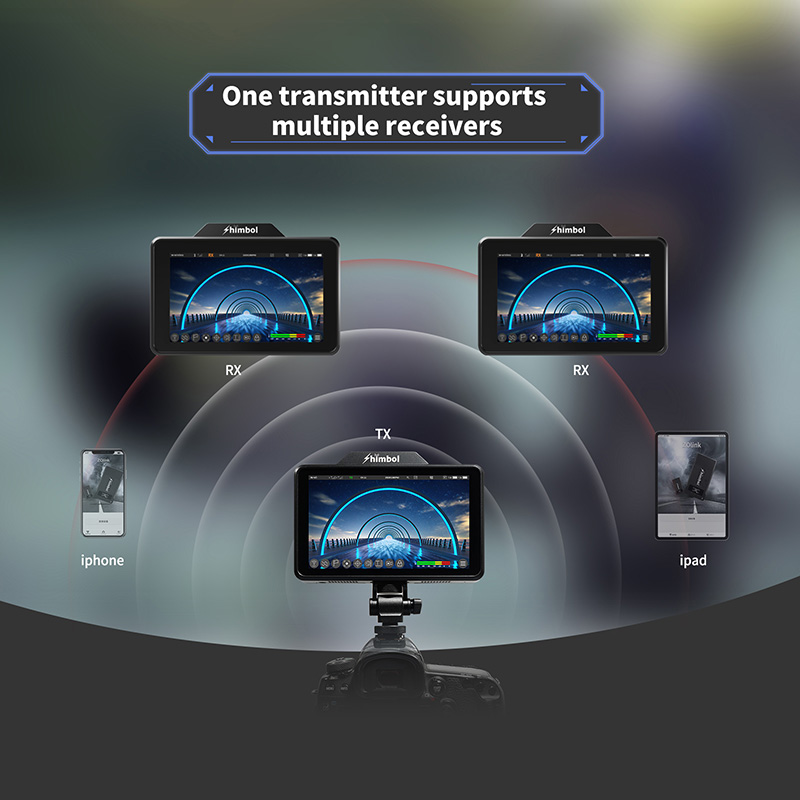

Shimbol ZO600M and ZO600MS are 5.5" wireless Touchscreen monitors that have the unique ability to be used as either a TX or an RX unit. Using it as an on-camera monitor, you can transmit images to two other ZO600M or ZO600MS monitors or any other Shimbol receivers plus one mobile device. It is very handy for small crews. Just give a wireless monitor to a client, director, or anyone else in the set, and they can see in real time what the camera captures.
Target Group
The ZO600M and ZO600MS is targeted at users who are looking for an affordable all-in-one wireless monitoring solution, with the added versatility of being able to use the product as a stand-alone HDMI or SDI monitor. This could mean anyone from people starting out on a budget, right up to seasoned professionals.
Recording
One of the nice features of the ZO600M and ZO600MS is that it does onboard recording. This is done in the MP4 format in HD to a TF card.
Teleprompter
Another nice feature is the Teleprompter function. The Shimbol ZO600M (not the ZO600MS) has a dedicated Teleprompter menu. Upload a file with the text content to a TF card, inserts it in the TF slot of the ZO600M, and then play it back on the screen.
The TF card should be formatted to FAT32, and the text file should have the .txt file format. You can choose the font color, font size, and latency.
Differences between ZO600M and ZO600MS
| ZO600M | ZO600MS | |
| I/O | HDMI | HDMI+SDI |
| Distance (LOS) | 180m/600ft | 300m/1000ft |
| Frequency Band | 5G | 2.4G&5G |

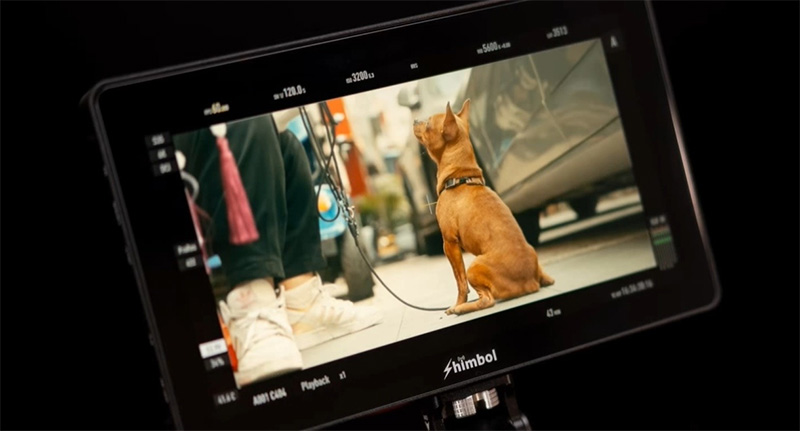

Feature List ZO600M + ZO600MS
- Display Screen: 5.5 " Touch Panel
- Screen Resolution：1920*1080
- Interface ZO600M: DC In , DC Out, HDMI input, HDMI Output, 3.5mm Headphone out, TF card slot, USB-C
- Interface ZO600MS:DC In , DC Out, HDMI&Output, SDI Input& Output, 3.5mm Headphone out, TF card slot, Type C
- Power Supply Method: L Series NPF Battery / DC
- Wireless Transmission (Transmitter - Receiver function switch)
- Wireless Transmission Frequency Band: 5G for ZO600M, Dual-Band 2.4G&5G for ZO600MS
- Video recording & playback (with trigger or timecode support and simultaneous recording of TX/RX)
- Teleprompter (in ZO600M only)
- Image assist tools: Luma Waveform, RGB Parade, Vectorscope, Histogram, Aspect ratio markers, Safe Area, Center Marker, Focus Peaking, Zoom In, Zebra Pattern, False Color, Monochrome, 3D LUT loading & adjustment, Gamma setting, HDR monitoring, Color temperature setting, Sharpness, RGB adjustment, and more
- Housings with 1/4"-20 mounting thread
- Antennas: Built-in Antennas for ZO600M, External Antennas for ZO600MS
- Real-time app monitoring via the Shimbol app
- Simultaneously transmit to two receivers and one app
- Transmits up to 1080p60 HDMI video
- Line-of-sight transmission to receiver (LOS): 600ft/180m for ZO600M, 1000ft/300m for ZO600MS
- Extremely Low 0.08s Latency
SHIMBOL ZO1000
Shimbol ZO1000 is a TX and RX set that can transmit SDI and HDMI video signals up to a distance of 300m to the receiver.
UVC Output for Streaming
A nice feature of the ZO1000 is the UVC output for streaming purposes. UVC is a technology in live broadcast where you don't need a video capture card to pull the stream. How does it work? You connect the ZO1000 (RX) to a computer via the USB-C output that contains embedded UVC data. The ZO1000 is directly recognized by OBS, or any other video recording and live streaming software that supports UVC. From the software, you can stream the video directly to streaming platforms such as Facebook, Youtube, Twitch, Zoom, etc.
Feature List ZO1000
- Transmits up to 1080p60 SDI or HDMI video
- 1000ft/300m line-of-sight transmission to the receiver
- Transmitter: HDMI In, SDI In, Receiver: HDMI Out & SDI Out + USB-C output (Embedded UVC)
- Metal Housings with 1/4"-20 mounting thread
- Bright OLED Display
- Real-time app monitoring via the Shimbol app
- Simultaneously transmit to 2 receivers and one app
- Power via L Series NPF Battery (without battery inside) or USB Type-C input
- Extremely Low 0.08s Latency
SHIMBOL ZO600S
Shimbol ZO600S is a TX and RX set that can transmit SDI and HDMI video signals up to a distance of 180m to the receiver.
Feature List ZO600S
- Transmits up to 1080p60 SDI or HDMI video
- 600ft/180m line-of-sight transmission to the receiver
- Transmitter: HDMI In, SDI In, Receiver: HDMI Out & SDI Out
- Metal Housings with 1/4"-20 mounting thread
- Built-in Antennas
- Bright OLED Display
- Real-time app monitoring via the Shimbol app
- Simultaneously transmit to 2 receivers and one app
- Power via L Series NPF Battery (without battery inside) or USB Type-C input
- Extremely Low 0.1s Latency
SHIMBOL ZO500
Shimbol ZO500 is a TX and RX set that can transmit HDMI video signals up to a distance of 150m Line of Sight to the receiver.
Feature List ZO500
- Transmits up to 1080p60 HDMI video
- 500ft/150m line-of-sight transmission to the receiver
- Transmitter: HDMI In, HDMI Out, Receiver: 2x HDMI Out
- Metal Housings with 1/4"-20 mounting thread
- Built-in Antennas
- Bright OLED Display
- Real-time app monitoring via the Shimbol app
- Simultaneously transmit to 2 receivers and one app
- Power via L Series NPF Battery (without battery inside) or USB Type-C input
- Extremely Low 0.1s Latency
Price List
- Download here the Shimbol price list
About Shenzhen ZO Video Technology Co., Ltd
Established in 2017，Shenzhen ZO Video Technology Co., Ltd is a professional manufacturer who focuses on Wireless HD audio and video transmission solutions and products. The R&D team focuses on offering professional technology in wireless transmission sector, while maintaining competitive and comprehensive solutions to satisfy all your HD wireless video transmission and SDI/HDMI solution needs.Up to now, ZO Video Technology has become the leading R&D center and product supplier in the field of professional wireless audio and video transmission, the products are widely used in various fields such as film and TV advertisement shooting, VLOG video shooting, wedding recording, network live broadcast, interview, education, exhibition, radio and television, enterprise conference, etc.
About Shimbol
Aiming at the increasingly professional needs of Prosumer, YouTube, and Vlogger Markets, the company established the SHIMBOL brand, which focuses on cost-effective wireless digital HD audio and video transmission products.
